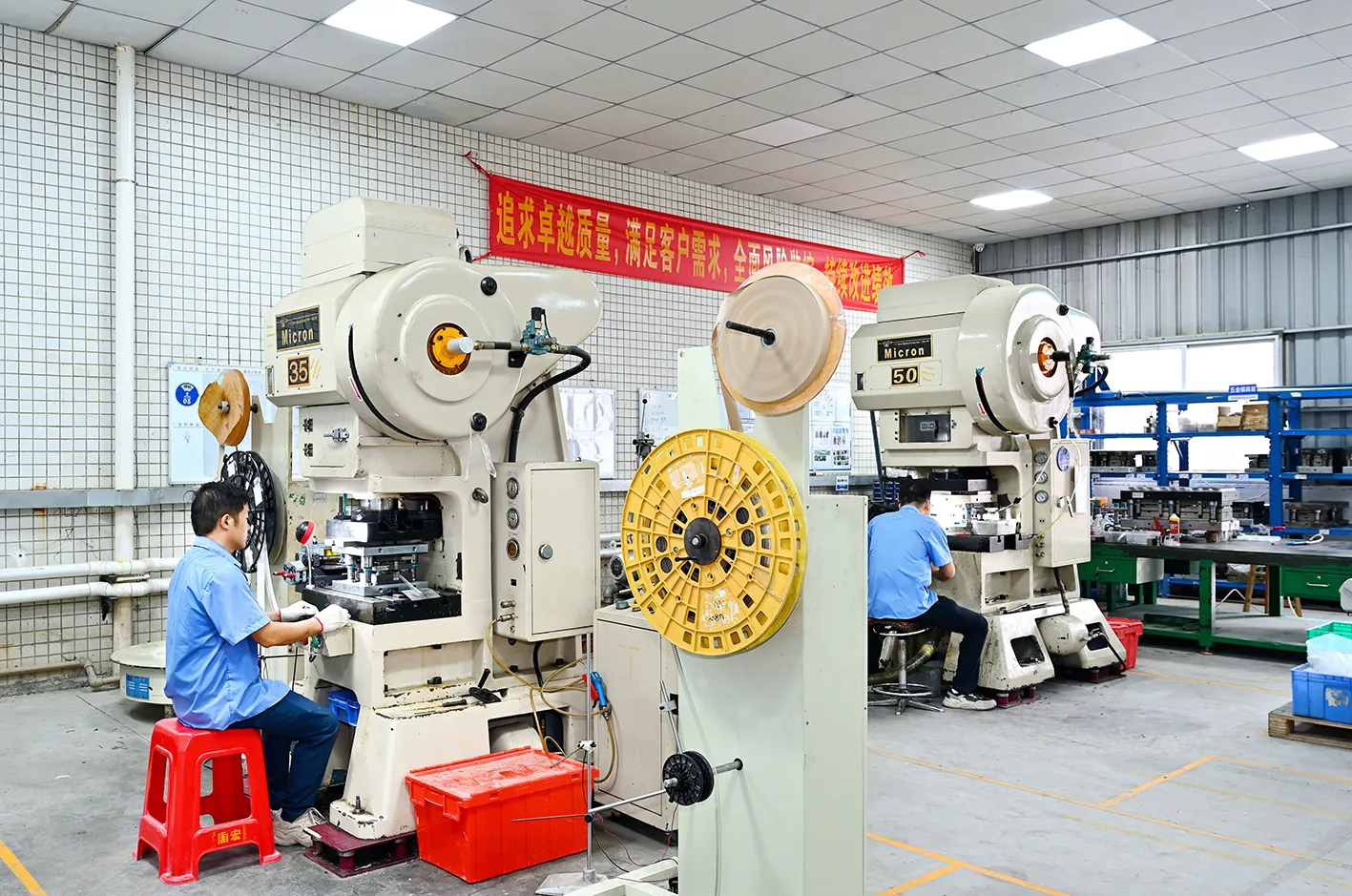

Stamping Die Manufacturing
Progressive, compound and stage dies for precision metal stamping — 2–5 week lead time, SKD11/SKH51 tool steel, ±0.002 mm alignment, in-house machining and tryout.
WHAT WE OFFER
Stamping Die Manufacturing Services
Progressive Dies
High-speed multi-station dies for connectors, terminals and brackets.
Compound and Stage Dies
Blanking, forming and drawing dies for precision sheet metal parts.
Die Steel Expertise
SKD11, SKD61 and powder steels with in-house heat treatment.
±0.002 mm Alignment
Waida jig grinding and wire EDM hold punch-die alignment.
2–5 Week Lead Time
In-house build from design to tryout — no subcontract queues.
Tryout Support
Sample production and die adjustment on request.
OUR PROCESS
From Inquiry to Delivery
WHEN TO USE THIS
Challenges This Solves

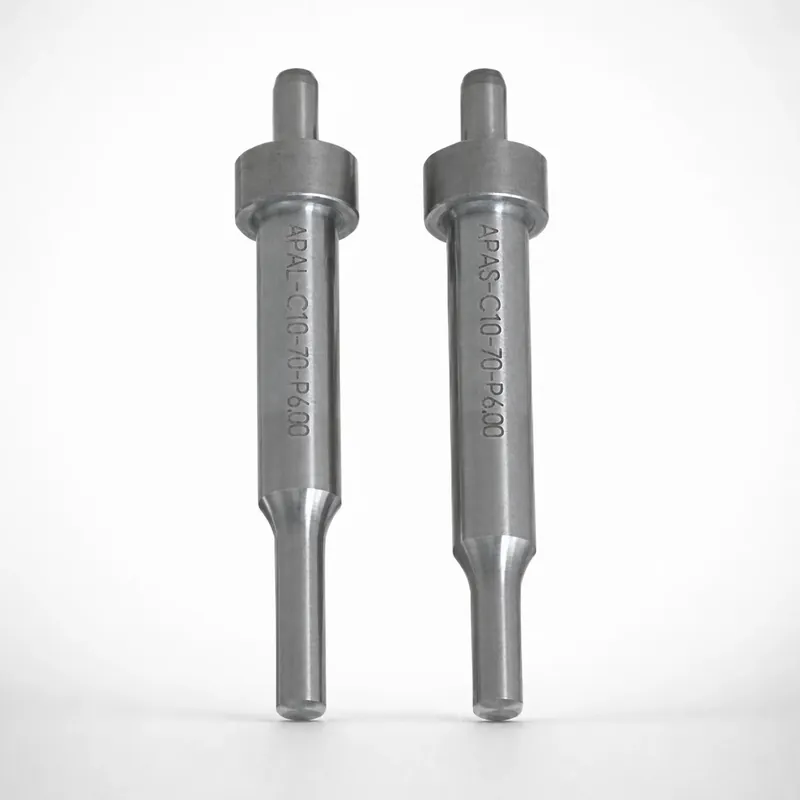

High wear on punches
Powder HSS and TiN/CRN coatings extend punch life between regrinds.
Tight alignment
Jig grinding and wire EDM hold punch-to-die clearance to spec.
Material waste
Strip layout optimization cuts scrap and lowers part cost.
FAQ
Stamping Die Manufacturing — FAQ
What types of stamping dies do you build?
Progressive dies (multi-station), compound dies (blanking and forming in one stroke) and stage dies (sequential operations), for thicknesses from thin foil to heavy plate.
What is the lead time for a stamping die?
2–5 weeks depending on station count and complexity. Prototype and short-run tools can be fast-tracked.
Which steels do you use for dies?
SKD11 and SKD61 are standard; powder high-speed steels for high-wear punches. Heat treatment is done in-house with hardness records.
Can you provide samples before full production?
Yes — dies are tried out and samples are produced and approved before delivery.
Do you support progressive die design?
Yes. Our engineers design the complete strip layout and die, optimizing material utilization and station balance.
Can you maintain or repair existing dies?
Yes — we repair and rebuild dies from other suppliers, including punch replacement and coating renewal.
